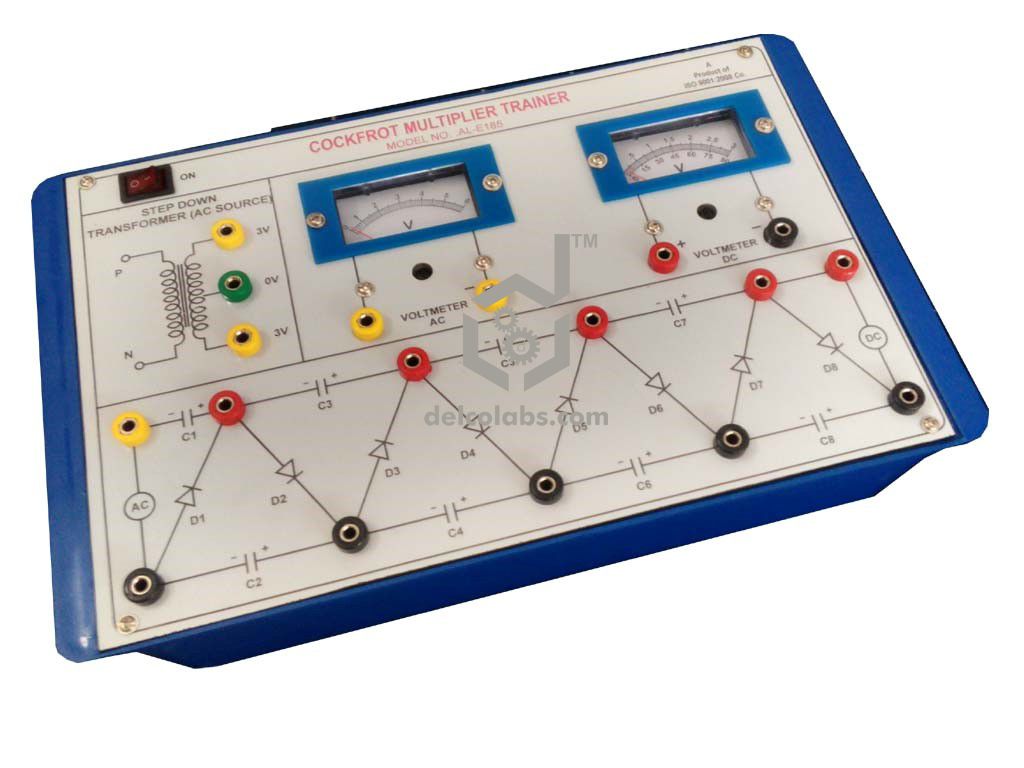

Voltage Multiplier Trainer (Cockfrot Multiplier)

Product Code: 3511008

SCOPE OF LEARNING:
•    Study of Voltage Multiplier Using Diode and Capacitors.
TECHNICAL SPECIFICATIONS:
Analog Meters:
•    Volt meter 6V AC.
•    Voltmeter 50V DC.
Power Supplies:
•    AC Supply 3-0-3V AC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    DIODES
•    CAPACITORS
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
•    Multimeter
