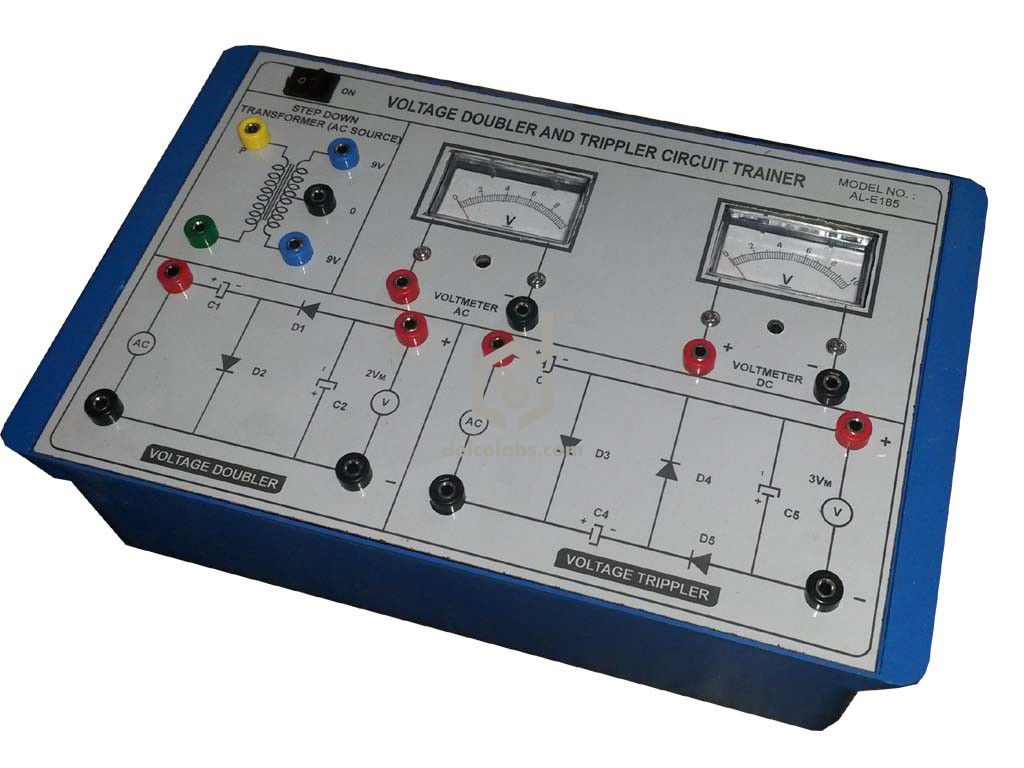

Voltage Doubler and Trippler Trainer Kit

Product Code: 3511687

SCOPE OF LEARNING:
•    Study of Voltage Doubler and Tripler
•    TECHNICAL SPECIFICATIONS:
Power Supplies:
•    AC Supply 9-0-9V AC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Analog Meters:
•    Voltmeter 20V AC.
•    Voltmeter 60V DC.
Components are mounted on the panels are:
•    Diode 1N4007
•    Capacitor 10uF
•    Series Resistor 470E
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
