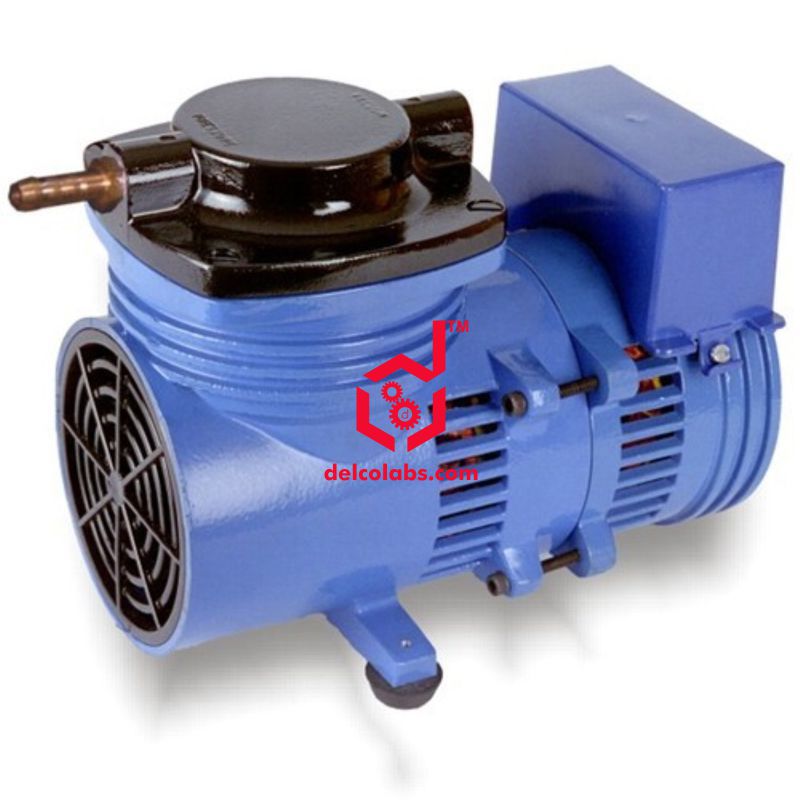

Vacuum Pump, Diaphragm Type, 60 Psi

Product Code: 2510220

Oil free vacuum pump. Specially designed construction of piston / diaphragm never requires lubrication. Rated for continuous use with built in rugged motor either single phase or three-phase. Most versatile, durable, compact vacuum pump, features permanently lubricated ball bearing. Making it practically maintenance free; portable, light weight die cast aluminum components keep overall weight minimal; low noise level and balanced eccentrics provide smooth, low vibration operation. Having built in micro air filter, fitted with metal plate.

TECHNICAL SPECIFICATIONS:
• Type Diaphragm (Oil Free)
• Maximum Pressure (PSI)  60
• Vacuum (Inch of Hg) 28
• Free Air (Liter/mm)  50
• Delivery (CFM)  1.75
• Motor Rating [HP (Watts)] 1/3 (250)
• Electrical Input 220V AC, 1 or 3 Phase
• Current Rating 1.8A Maximum
• Dimensions (H×W×L) (Inch) 9×4½×13
• Weight (kg)  9.0
