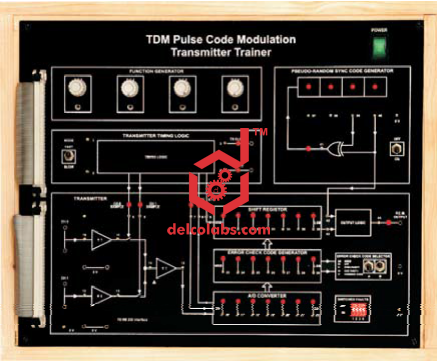

TDM-PCM Pulse Code Modulation Transmitter Trainer

Product Code: 3510311

SCOPE OF LEARNING:
•    Study of Pulse Code Modulation. Study the principles of ADC &DAC Study of Pseudo Random Sequences
•    Study of effect of faults in Modulation & Demodulation Techniques.
•     Study of Error Check Code Logic:
•    -­‐  None Parity Coding.
•    -­‐  Odd Parity Coding
•    -­‐  Even Parity Coding
•    -­‐   Hamming  Coding
•    TECHNICAL SPECIFICATIONS:
Generator:
•    Crystal Controlled Clock.
•    On-­‐board Sine wave generator (Synchronized)
Power Supply:
•    Fixed DC Power Supplies +12V,+5V DC, 250mA
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    IC
•    Capacitors
•    Resistors
•    Diode
•    PCM Transmitter.
•    Fast & Slow modes for real time operation and data flow examination. Error check code options (odd-­‐even parity, Hamming Code).
•    4 Switched faults allow different Error Check Options.
•    PC -­‐  PC Communication via RS 232 interface
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
•    CRO
