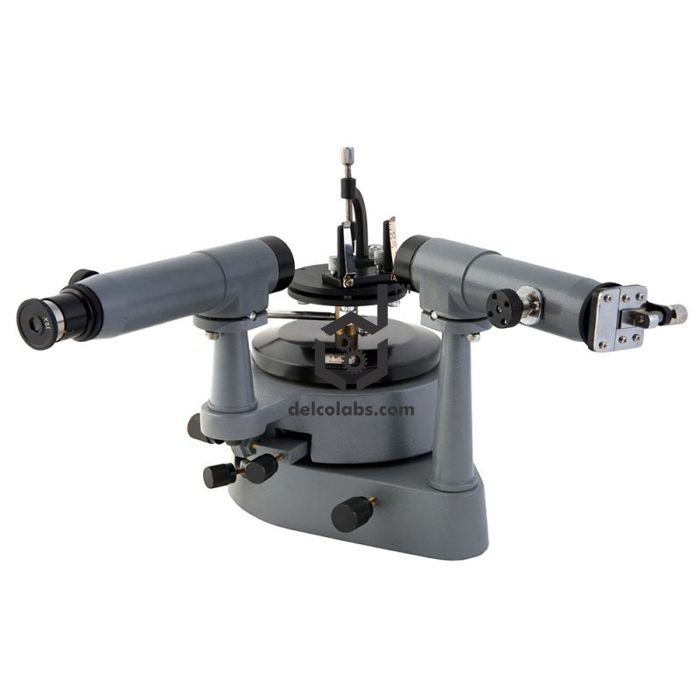

Spectrometer Advanced

Product Code: 1347750

Scale: Main scale about 150mm in diameter is fixed on the turntable that also holds telescope. Scale is precision engraved 0-360º × ½º

Collimator: Mounted on fixed pillar and fitted with 178mm focus achromatic objective, 32mm clear aperture.

Telescope: Mounted on moveable pillar and fitted with 178mm focus achromatic objective. Also fitted is a 15× Ramsden eyepiece and a cross-line graticule.

Prism Table: The table is marked with grooved lines to assist placing the prism with respect to the table leveling screws, and has interchangeable clamping units for the     prism and a diffraction grating.

Standard Accessories Supplied: 1 Dense Flint Glass prism, 1 Prism clamp, 1 Diffraction grating holder, 1Watchmaker's eyeglass, 1 Tommy bar / L Key for adjusting
optical axis of tubes, 1 Polished hardwood case
