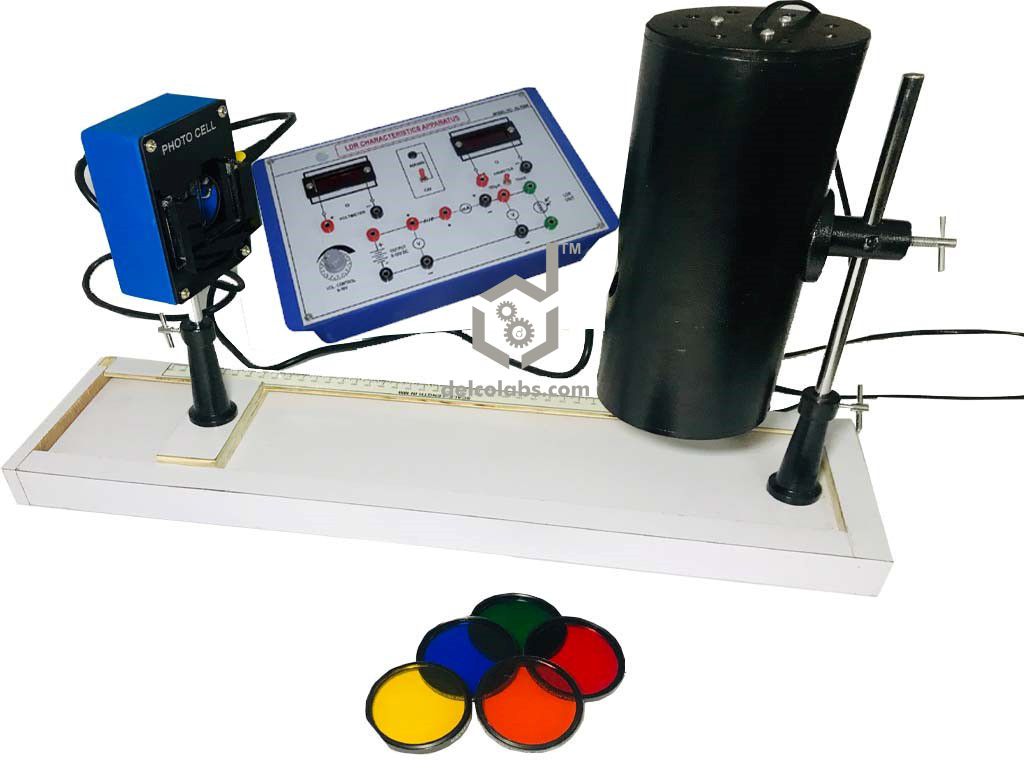

Spectral Characteristics of LDR

Product Code: 3511006

SCOPE OF LEARNING:
•    Study of V-I Characteristics of LDR
•    Study of Spectral Characteristics of LDR
TECHNICAL SPECIFICATIONS:
Digital Meters:
•    Volt meter 10V DC.
•    Ammeter 10Ma/100uA DC.
Power Supplies:
•    DC Supply IC Regulated 0-10V DC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Voltage Control through Potentiometer.
ACCESSORIES INBUILT:
•    LDR mounted on Separate unit.
•    Light Source is housed in suitable box
•    100W Bulb as Light Source.
•    Color Filters: Red, Yellow, Green, Blue and Voilet.
•    Stand to hold color filter.
•    Wooden Optical Bench
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and  symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
•    Multimeter
•    Lux Meter
