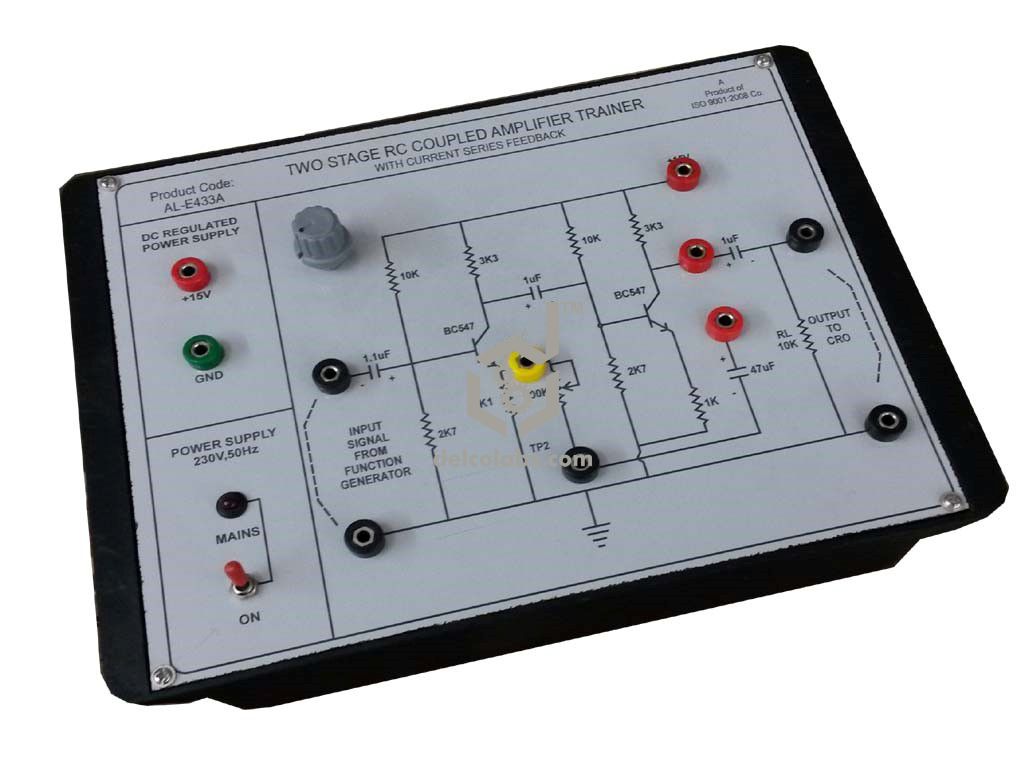

RC Coupled Amplifier with Current Feedback

Product Code: 3512388

SCOPE OF LEARNING:
•    Study of Multi Stage Amplifier Using Transistor With Current Feedback
TECHNICAL SPECIFICATIONS:
Power Supplies:
•    DC Power Supply IC Regulated +15V DC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Transistors
•    Resistors
•    Capacitors
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
•    Function Generator
•    AC Milli Voltmeter
•    CRO
