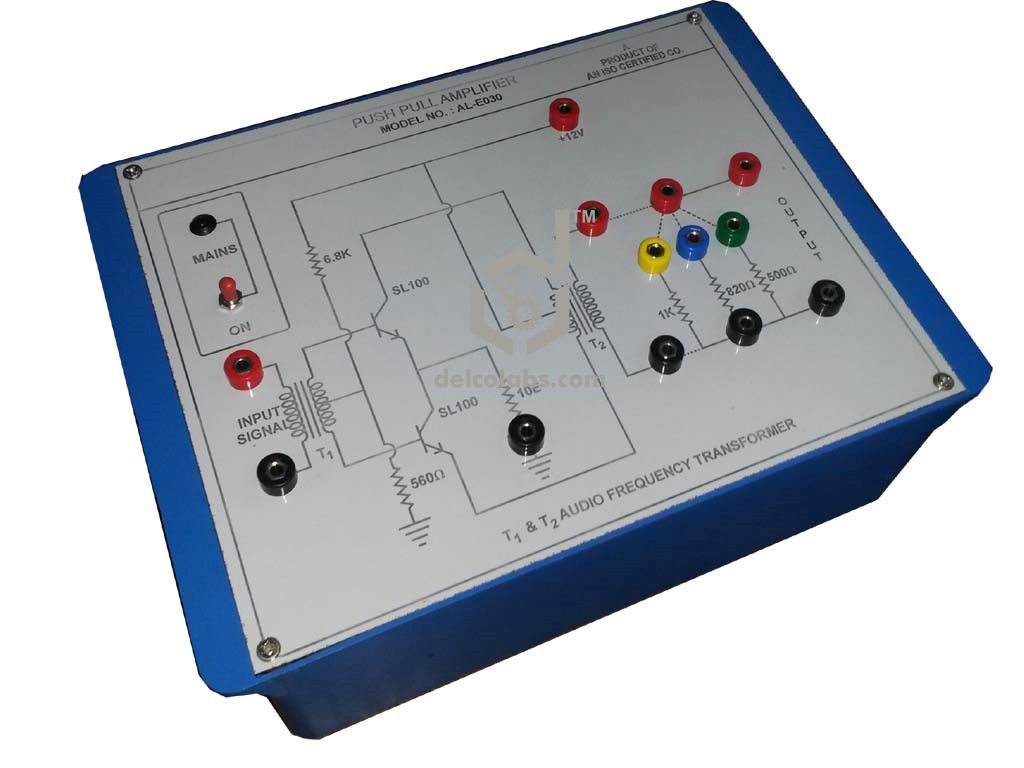

Push Pull Amplifier Trainer

Product Code: 3512303

SCOPE OF LEARNING:
•    Study of Transformer Coupled/ Push Pull Amplifer
TECHNICAL SPECIFICATIONS:
Power Supplies:
•    DC Power Supply IC Regulated +15V DC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Transistor SL100
•    Audio Transformer
•    Resistors
•    Capacitors
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
•    Function Generator
•    Analog Power Meter
•    CRO
