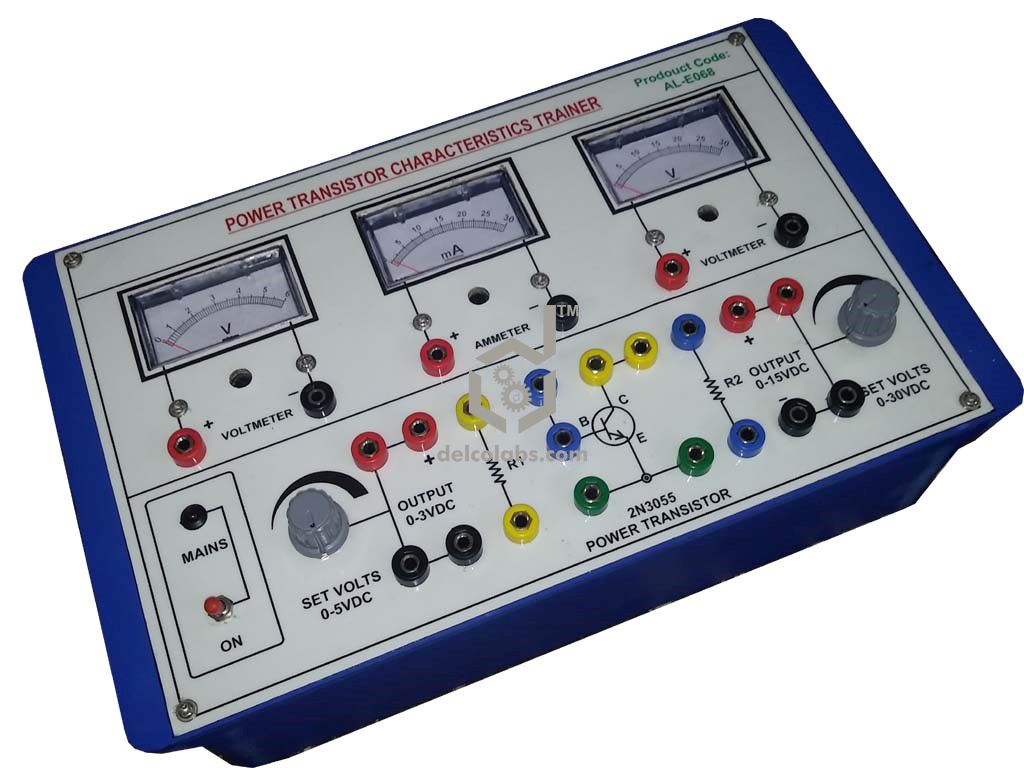

Power Transistor Characteristics (Analog Meters)

Product Code: 3510976

SCOPE OF LEARNING:
•    Study of V-I Characteristics of Power Transistor
TECHNICAL SPECIFICATIONS:
AnalogMeters:
•    Voltmeter 6V DC.
•    Ammeter 50mA DC.
•    Voltmeter 30V DC.
Power Supplies:
•    DC Supply IC Regulated 0-5V DC, 150mA.
•    DC Supply IC Regulated 0-30V DC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Power Transistor 2N3055
•    Voltage Control through Potentiometer.
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
