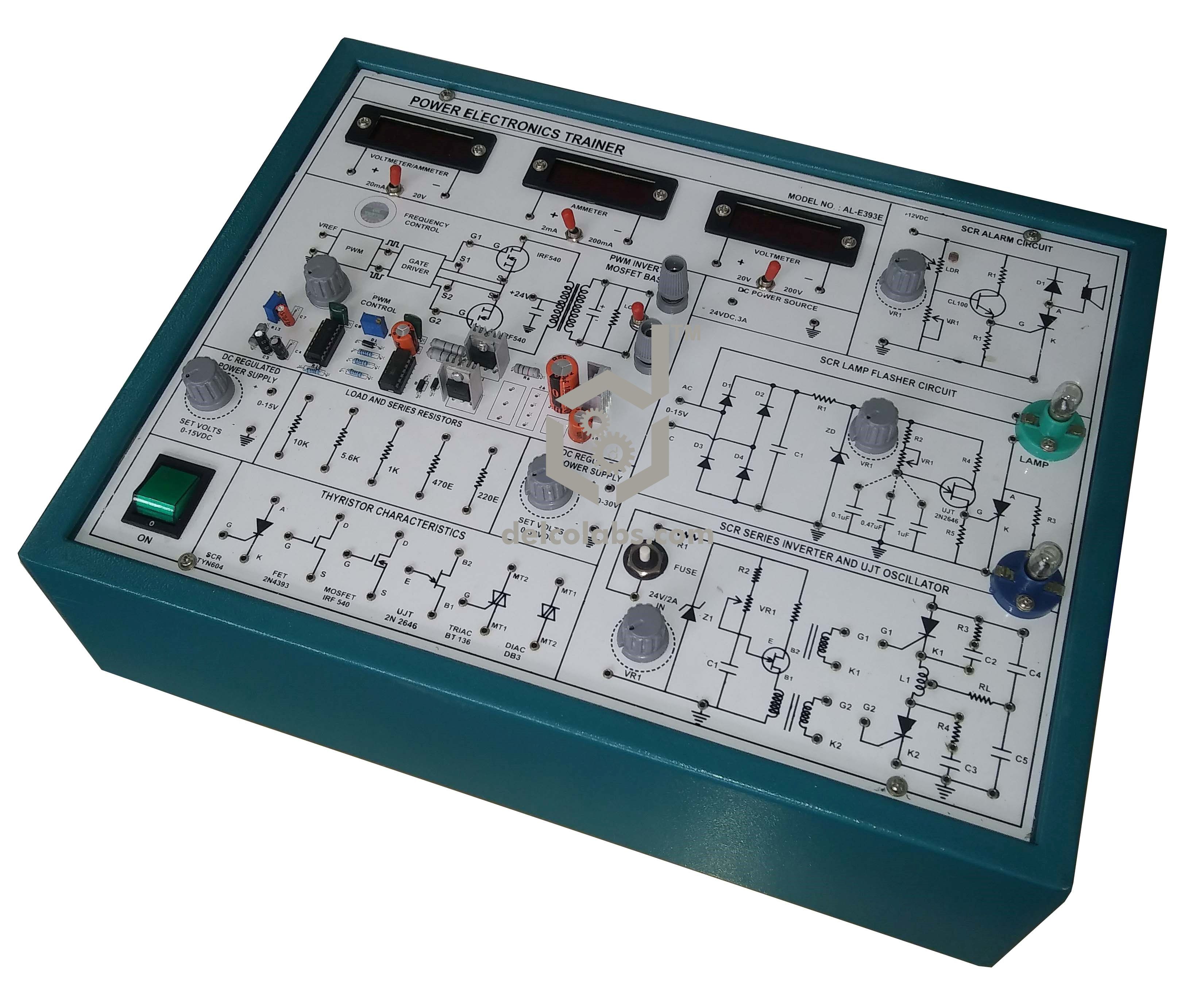

Power Electronics Trainer (Onboard 6 Applications- New Syllabus)

Product Code: 3510183

SCOPE OF LEARNING:
•    To study the Characteristics of Thyristor ( SCR, DIAC, TRIAC, UJT, MOSFET and FET)
•    To study the SCR based Alarm circuit
•    To study SCR as Lamp Flasher
•    To study UJT Relaxation Oscillator and Series Inverter
•    To study PWM Controlled MOSFET Inverter
•    TECHNICAL SPECIFICATIONS:

•
Digital Meters:
•    Voltmeter/Ammeter 20V/20mA
•    Ammeter 2ma/200mA
•    Voltmeter 2V/200V
Power Supplies:
•    DC Power Supply 0-15V, 250mA DC.
•    DC Power Supply 0-30V, 250mA DC.
•    DC Power Supply +24V, 3A DC.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Mosfet IRF540
•    UJT 2N2646
•    TRIAC BT136
•    DIAC DB3
•    SCR TYN604
•    DIODES, RESISTORS , VARIABLE RESISTORS & CAPACITORS
LOADS:AC Bulb (Different Rating) as Load
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Protection Cover.
•    Patch Cords 2mm.
•    Supply provided through the 3 pin computer socket with appropriate fuse
•    The trainer is housed in Metal cabinet.
•    Size of the trainer set 15”x11”
OPTIONAL ACCESSORIES:
•    CRO
