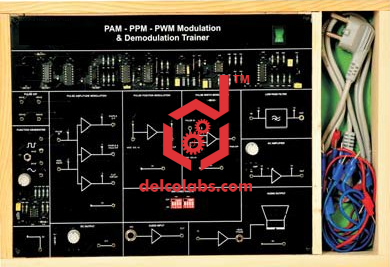

PAM, PPM, PWM Trainer (Advanced)

Product Code: 3510287

SCOPE OF LEARNING:
•    Study of Pulse Amplitude modulation and demodulation using Natural Sampling
•    Study of Pulse Amplitude modulation and demodulation using Flat Top Sampling
•    Study of Pulse Position modulation and demodulation using Natural Sampling and Flat Top Sampling
•    Study of Pulse Width modulation and demodulation using Natural
•    Sampling and Flat Top Sampling
•
•    TECHNICAL SPECIFICATIONS:
Generator:
•    Analog waveform : Sine wave of Frequencies of output of 250Hz, 500Hz, 1 KHz, and 2 KHz. Wtih Adjustable Amplitude of 0-­‐4Vp-­‐p
•    Onboard circuits : Analog Sample Circuit/output
•    Sampling Frequencies : 4,8,16,32 Khz. With Amplitude of 5V. Sample & Hold Circuit /output
•    Low Pass Filter
•    Analog Sample Circuit/Output, Sample & Hold Circuit/Output.
Power Supply:
•    Fixed DC Power Supplies +12V,+5V DC, 250mA
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    IC
•    Capacitors
•    Resistors
•    Diode
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
•    CRO
