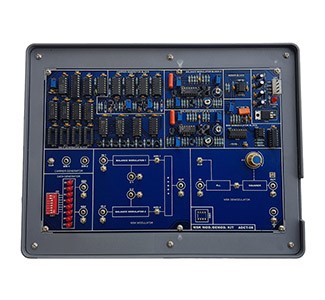

MSK Modulation and Demodulation Trainer

Product Code: 3510331

This is an Advance Digital Communication Trainer System that helps one under stand various Digital Modulation and Demodulation Techniques. Various functional block diagrams are provided on- board as an aid for Teaching/Training. These Kits are provided with various Test Points to visualize the signals on Oscilloscopes.

    TECHNICAL SPECIFICATIONS:
Specifications
•    Carrier Generator
•    On Board synchronized RF carrier signal generators with frequencies of 120 KHz, 200 Kh
•    Data Generator
•    8 bit Digital Data generator to generate any binary input word.
•    Selection of Data using 8-way DIP Switch.
•    Display
•    One LED indicator to indicate Power input.
•    On-board Circuits
•    On board two Balanced Modulator Circuit.
•    Demodulator PLL Detector Circuit.
•    Squarer Circuit
•    Power Supply
•    Fixed DC power supply : +5V/500mA
•    Fixed DC power supply : +12 V/500mA
•    Interconnections
•    All interconnections are made using 2mm banana Patch cords.
•    Bare board Tested Glass Epoxy PCB is used.
•    Attractive ABS Plastic enclosure
•    Set of 2mm Patch cords for inter- connections
•    User's Manual

OPTIONAL ACCESSORIES:
•    CRO
