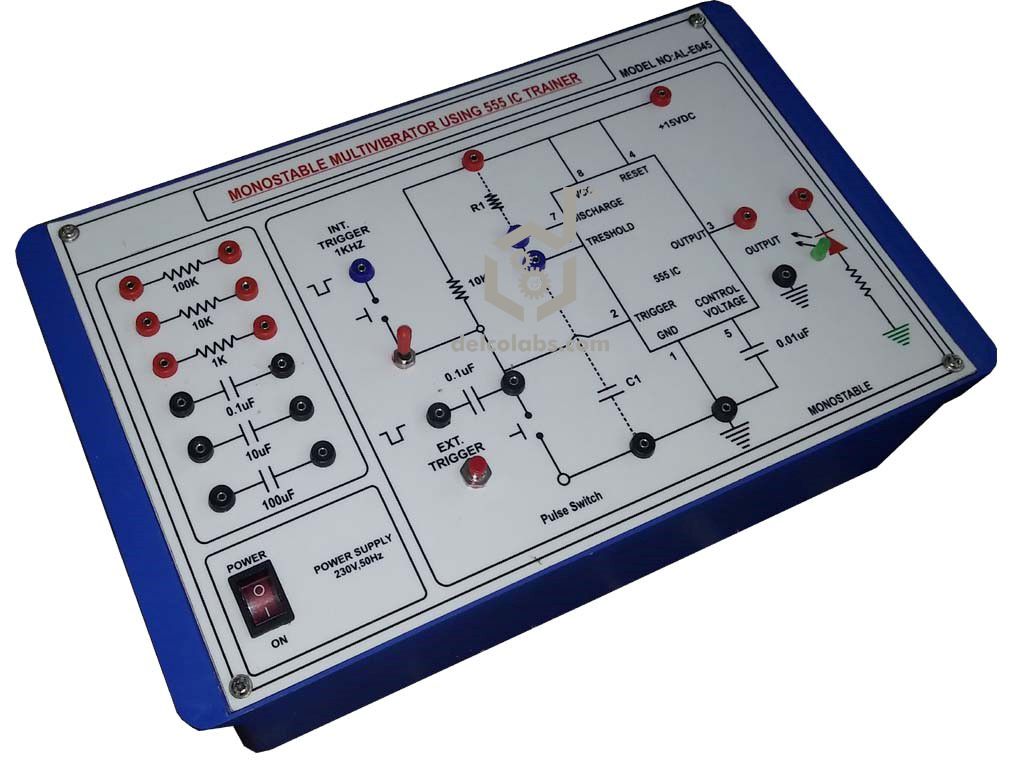

Monostable Multivibrator Trainer (using 555 IC)

Product Code: 3512223

SCOPE OF LEARNING:
•    To Study the IC 555 as a Monostable (Free-Running) Mutivibrator
•    TECHNICAL SPECIFICATIONS:
Power Supplies:
•    DC Power Supply IC Regulated +15V DC, 150mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    Passive Components are mounted on board behind the panels are
•    RESISTANCE
•    CAPACITORS
•    IC NE555
•    VARIABLE RESISTOR 10K
•    PULSAR SWITCH
•    TOGGLE SWITCH
•    LED
•    SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 2mm Colored Sockets.
•    Patch Cords 2mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 8”x12”
OPTIONAL ACCESSORIES:
•    CRO
•    FUNCTION GENERATOR
