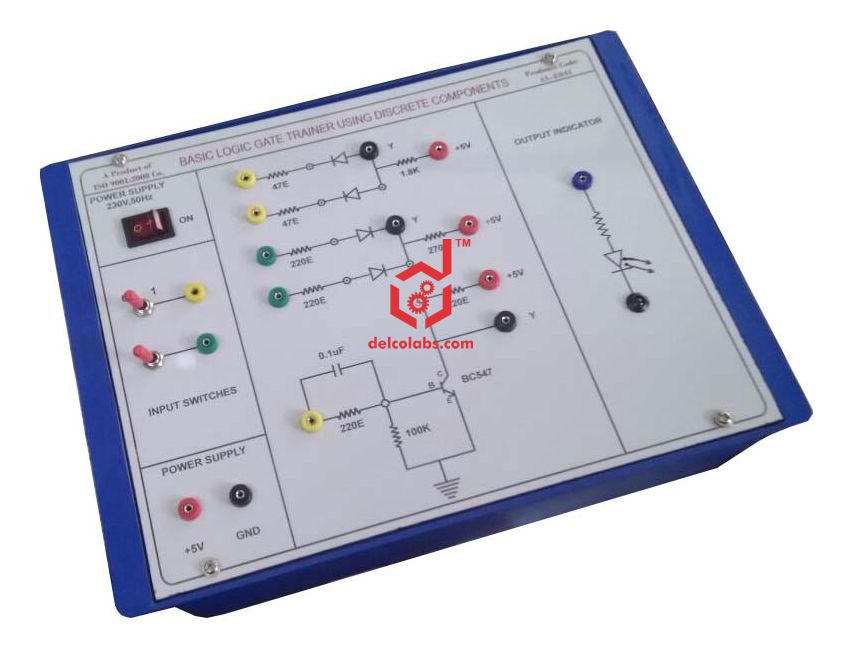

Logic Gate Trainer Using Discrete Components

Product Code: 3510559

SCOPE OF LEARNING:
•    Logic Gates Using Discrete Components
•    TECHNICAL SPECIFICATIONS:
Power Supplies:
•    DC Power Supply +5V,150mA
•    Operated on Mains power 230V, 50Hz +10%
•    Technical specifications:
•    Two independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
•     Two independent buffered logic level indicators for High / Low status
•    Circuit with OR, AND, Not Gate given on board.
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 10”x8”
