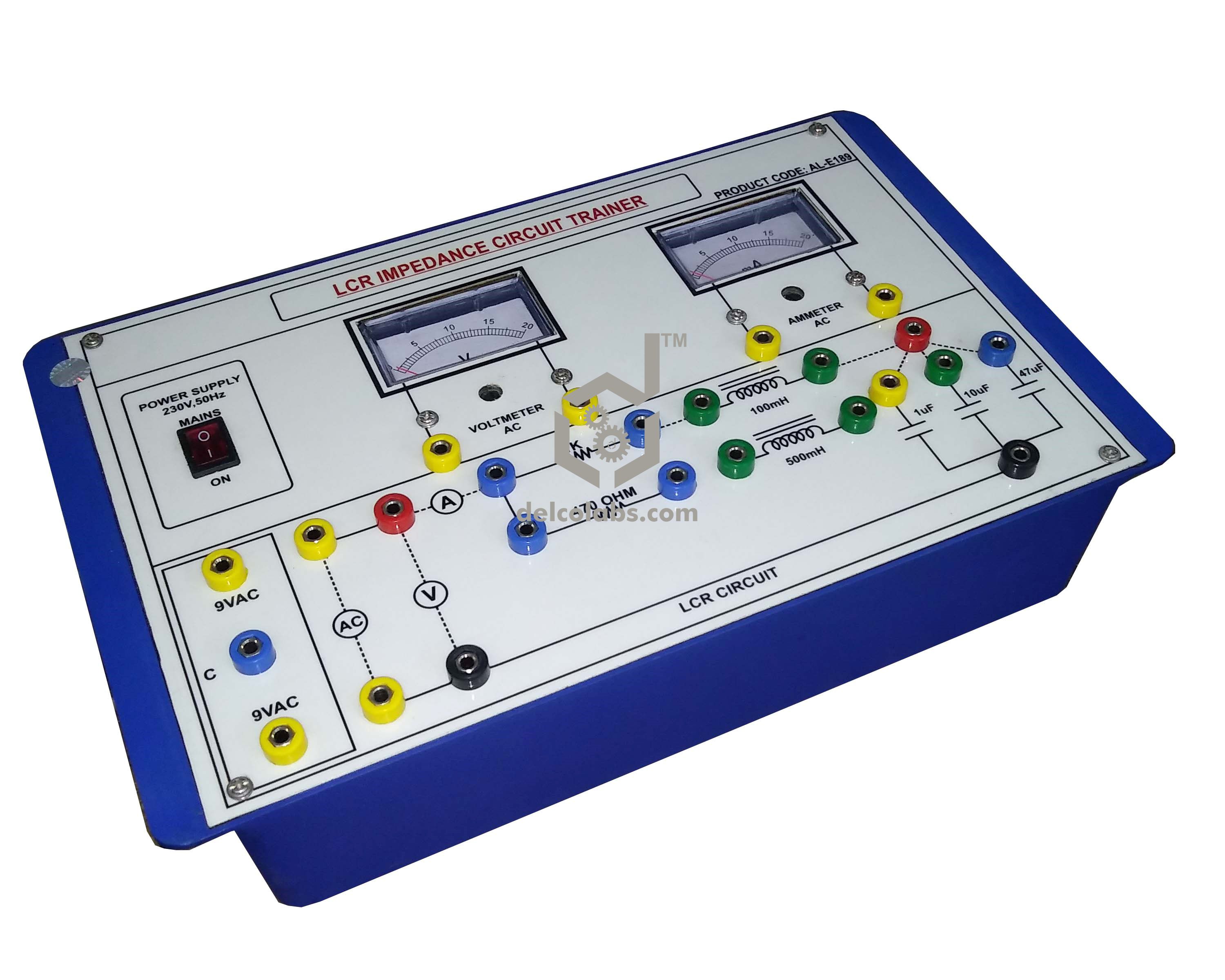

LCR Impedance Trainer (With Function Generator)

Product Code: 3511035

SCOPE OF LEARNING:
•    Study of LCR Impedance.
TECHNICAL SPECIFICATIONS:
Analog Meters:
•    Ammeter 20mA AC.
•    Voltmeter 20V AC.
Power Supply:
•    9-0-9 Isolated Power Supply at 150mA.
Sine Wave Generator:
•    0-100KHz Sine Wave Generator 0-15Vpp
Components are mounted on the panels are:
•    2 Nos. of Resistors selected
•    3 Nos. of Capacitors selected
•    2 Nos. of Inductors selected
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
•    Calc.
