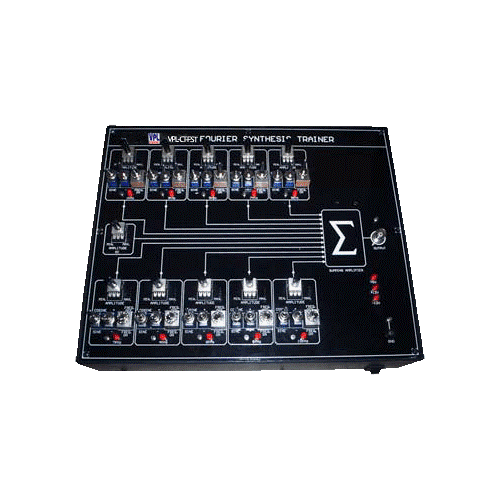

Fourier Synthesis Trainer Kit

Product Code: 3510407

SALIENT FEATURES
•    VLSI Based Training System
•    On board digitally synthesized fundamental frequency & harmonics
•    On board DC Generators
•    Digitally controlled select switch for Harmonic
•    On board Summing Amplifier
•    Individual Gain Control
•    On board sine, Cosine selection
•    On board Phase Reversal provision
•    Built in Power Supply
•    Functional Blocks indicated on Mimic Board
TECHNICAL SPECIFICATIONS
•    Harmonic Generation Technique : Direct Digital Synthesis
•    Eleven Input Summing Amplifier : 1 No.
•    Fundamental Frequency : 1 KHz
•    Harmonics Generation : 9 Harmonics, ranges from 2 KHz to 10 KHz
•    Controllable gain : For individual frequency component domain
•    Digital Phase control : Of relative phases between fundamental and harmonics
•    On BoardWave forms : 0°(sine), 90°(cosine), 180°(-sine), 270°(-cosine)
•    Waveform level (max) : 5Vpp (Approximately)
•    DC constant generation : -5V to +5V (approximately)
•    Cabinet : Enclosed in ABS plastic cabinet with detachable cover
•    Power : 220V AC ±10%, 50/60Hz mains operated
•    Accessories : Set of Patch Cords, User’s manual
 LIST OF EXPERIMENTS
•    To construct a triangular wave with the help of fundamental frequency and its harmonic component
•    To construct a rectangular sawtooth wave with the help of fundamental frequency and its harmonics component
•    To construct a square wave with the help of fundamental frequency and its harmonic component
•    To construct an absolute value sine wave with the help of fundamental frequency and its harmonic component
•    To construct Half sine wave with the help of fundamental frequency and its harmonic component
•    To construct AM wave with the help of 3 frequency components
