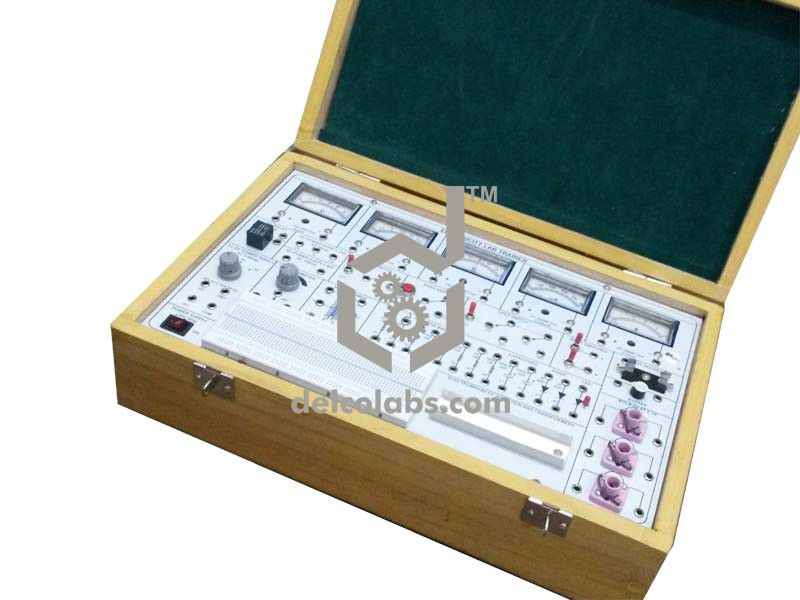

Electricity Lab Trainer

Product Code: 3510158

SCOPE OF LEARNING:
•    Series combination of bulbs.
•    Parallel combination of bulbs.
•    Operation of relay.
•    Operation of DPDT switch.
•    Operation of magnetic compass.
•    Study of bar magnet.
•    Study of electromagnetism through electromagnetic coils and cores.
•    Study of resistor.
•    Study of capacitor.
•    Study of diode.
•    study of transformer.
•    Study of ohm’s law.

TECHNICAL SPECIFICATIONS:
•    One number of ac voltmeter: 15v
•    One number of dc voltmeter : 30v
•    One number of galvanometer: ± 600ua
•    One number of dc ampere meter: 0.5amp.
•    One number of dc ampere meter: 5a
•    Power supplies: power supply: 2- 12v ac/dc at 3.5a, power supply: 30vdc at 500a, power supply: 15vdc at 500ma.
•    One number of SPDT switch.
•    One number of DPDT switch.
•    One number of push switch.
•    Two number of logic switch.
•    One number of relay 12vdc.
•    one number of buzzer/continuity tester.
•    Three number of bulb (6 v, 0.3a).
•    Resistance 1e2/1w, 5e/5w, 50e/5w, 100e/5w, 220e/2w, 470e/2w, 1k/1w, 100k/1w.
•    Two number of capacitance 1000mfd/50v.
•    Two number of diode in4007.
•    One number of led (5mm).
•    One number of potentiometer (10k).
•    One number of breadboard (840 tie points).
•    One number of fuse holders (open type).
•    Electromagnetic induction & transformer.
•    Main supply 230vac, 50 hz.
SALIENT FEATURES:
•    Twelve numbers of patch cords/ connecting leads.
•    Three numbers of magnets (two number of bar type, one number of horseshoe (u) type).
•    One number of coil (100 turns) and 200 turns
•    Glass Fuses - 10 nos. 0.5a
•    Compass - 1 no.
•    Core - 1 set of u & i with bolt
•    IC - And (IC 7408), Or (IC 7432), Not (7404) and Ex-or gate (ic7486)
•    Front Panel Built With High Class Insulated Printed Circuit Board Sheet With Well Printed Circuits & Symbols.
•    Fuse For Short Circuit Protection
•    Instruction Manual.
•    Connections are brought out through 2mm Brass Sockets.
•    Patch Cords 2mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x10”
