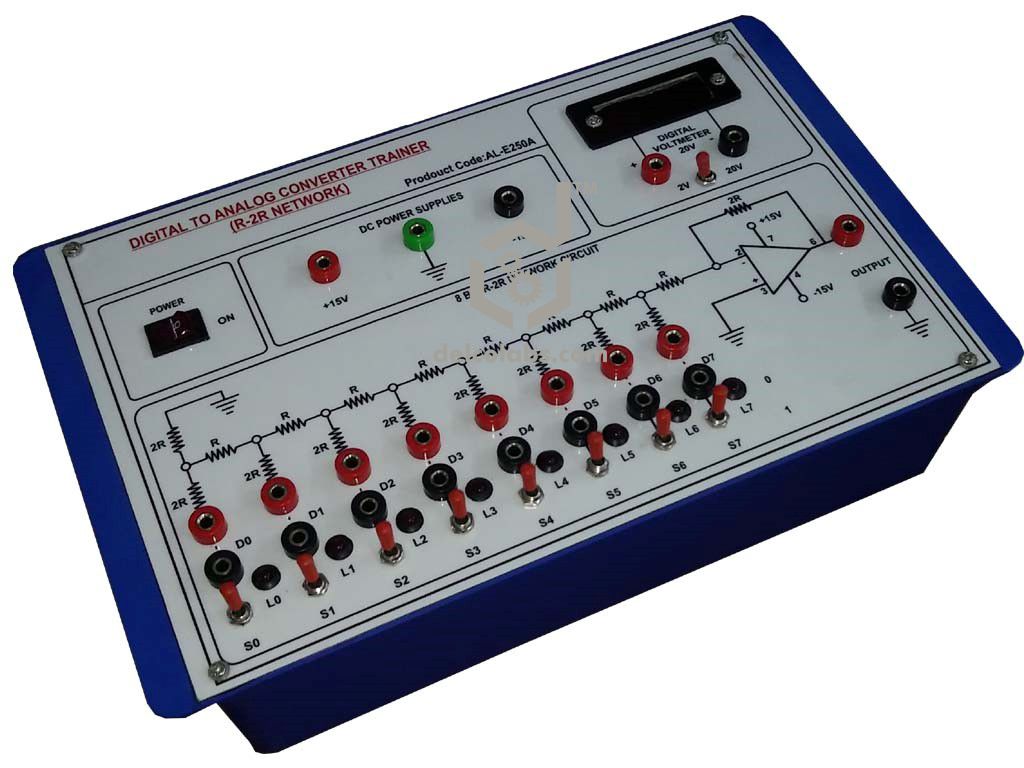

Digital to Analog Converter Trainer Using 8Bit R-2R Network

Product Code: 3510687

SCOPE OF LEARNING:
•    Varification of 8-Bit Digital to Analog Conversion.
•    TECHNICAL SPECIFICATIONS:
Power Supplies:
•    DC Power Supply +15V,150mA
•    DC Power Supply Voltage +5V,150mA
•    Operated on Mains power 230V, 50Hz +10%
Digital Meter:
•    Voltmeter 2V/20V DC
•    Technical specifications:
•    Eight independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
•     R-2R Ladder Network Through Resistances
•    741 IC given for Analog Conversion as a Driver.
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Colored Sockets.
•    Patch Cords 2mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
