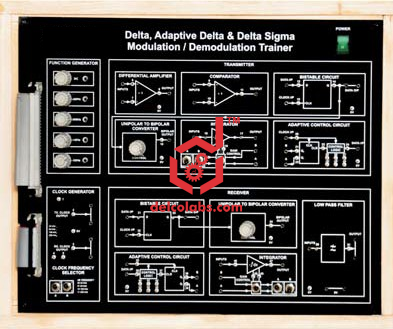

Delta, Adaptive Delta and Delta Sigma Modulation and Demodulation Trainer

Product Code: 3510319

SCOPE OF LEARNING:
•    Study of Delta Modulation & Demodulation
•    Study of effect of slope overload and increased integrator gain in Delta Modulation
•    Study of Adaptive Delta Modulation & Demodulation Study of Delta Sigma Modulation & Demodulation
•    Study of amplitude overload in Delta Sigma Modulation
•    TECHNICAL SPECIFICATIONS:
On Board:
•    Clock generation from Crystal.
•    Switch selectable clock frequency.
•    4 On-­‐board generators at 4 different frequencies (synchronized). Separate adjustable DC level.
•    Selectable integrator gain setting (by switch or control circuit) On board 4th order Butterworth low pass filter.
•    Unipolar to bipolar conversion on board.
Power Supply:
•    Fixed DC Power Supplies +12V,+5V DC, 250mA
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    IC
•    Capacitors
•    Resistors
•    Diode
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Instruction manual.
•    Connections are brought out through 4mm Sockets.
•    Patch Cords 4mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
•    CRO
