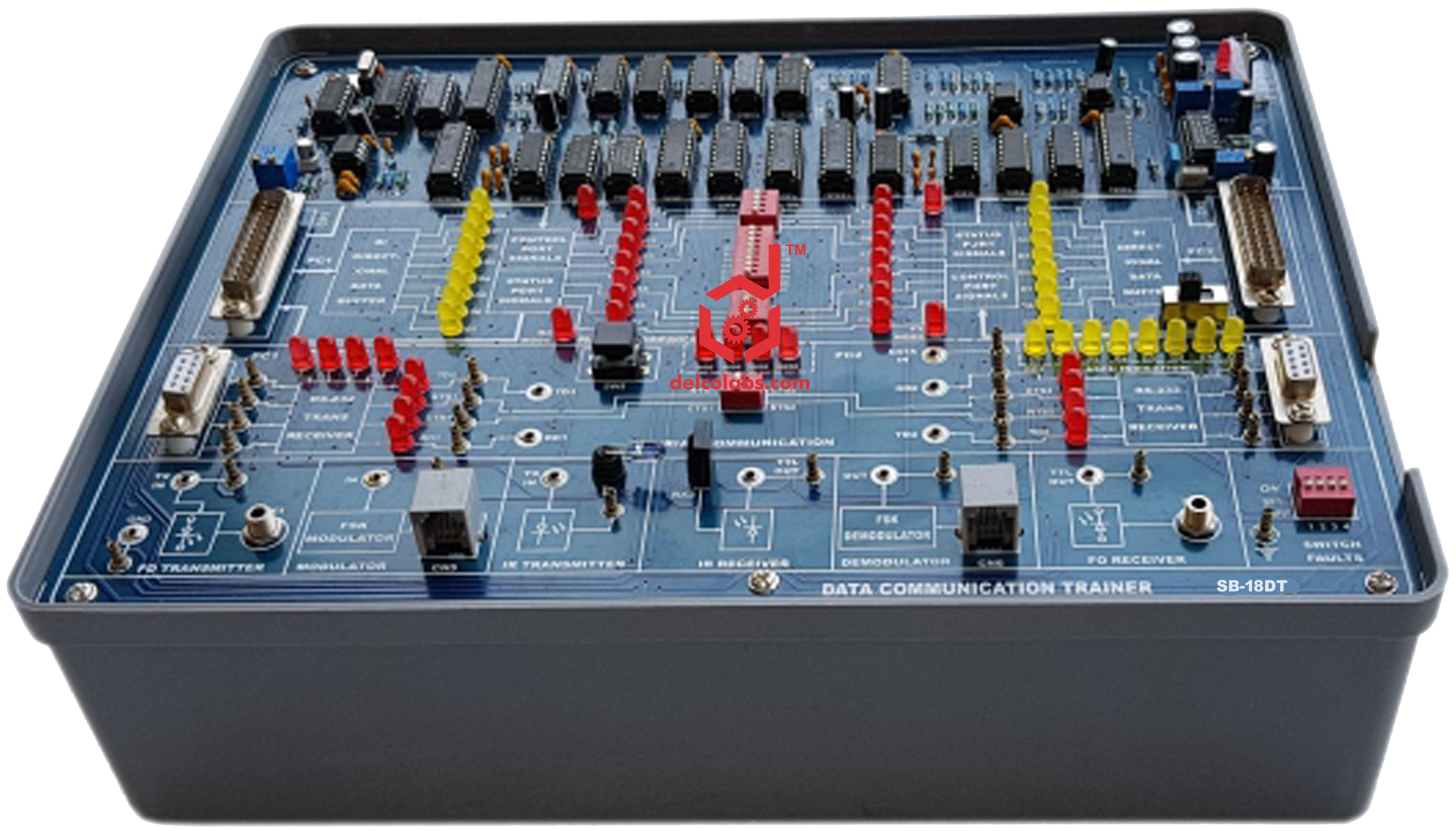

Data Communication Trainer Kit

Product Code: 3510381

In Data Communication Trainer the switch faults are provided on-board to study different effects on circuit and 20 Nos. of test points are provided on board to observe various intermediate signals.
Features
•     Serial Communication : RS-232 port (9 pin)
•    Serial Communication : RS-232 port (25 pin)
•    Parallel Communication : 25 Pin LPT Port
•    Wireless Communication : Infrared Transmitter : IR LED 920mm
•    Infrared Receiver : Direct TTL output Baud Rate : 2.4 kbps (max)
•    Carrier Frequency : 38Khz
Optic Fiber Communication
•    Transmitter : Peak wavelength of emission 660mm visible Red (SFH 756V)
•    Receiver : Photo detector with TTL logic output (SFH551V)
•    Baud Rate : 115kbps
Fiber optic cable
•    Plastic fiber, step index, multimode
•    Length : 1 meter
Modem Communication
•    Modulation : FSK Modulation
•    Mark Frequency: 300KHz
•    Space Frequency: 200KHz
•    Demodulation: PLL Detector
•    Mark Frequency: 300KHz
•    Space Frequency: 200KHz
•    Baud Rate: 56Kbps (max)
•    Twisted Pair Link : RG 11 Telephone connector
•    Data Indication : 8 bit Received data display
RJ45 Communication:-
•    RJ Cable Communication of max. Speed 10Mbps.
USB Communication:-
•    USB 2.0 Cable Communication of max. Speed 200Mbps.
Fire Wire Communication:-
•    Fire Wire Cable Communication of max.
•    Speed 400Mbps.
•    Serial Hardware and Software Protocol like X-Modem, Y-Modem, Z-Modem & Kermit Protocol
•    Parallel Port Hardware and Software Protocol like Stop & Wait, Go back N, Selective Repeat Protocol
Fault Switch
•    4 Switch Faults (LEDs) are provided on-board to study different effects on circuit.
•    2mm Banana Socket for interconnection.
•    Windows 98/XP/2000 based Software.
•    20 Nos. of Test Points are provided on board to observe various intermediate signals.
•    In-Built Power Supply +5V, ±12V
List of Experiments
•    Study of serial and parallel Port
•    Study of serial communication
•    Study of flow controls in serial communication
•    Study of protocols in serial communication
•    Study of fiber optic communication
•    Study of Modern communication
•    Study of wireless communication
•    Study of parallel communication
•    Study of printer interface using parallel port
ACCESSORIES:
•    RS-232 Serial Cable: 02 Nos.
•    DB25 Parallel Port Cable: 2 Nos.
•    RJ11-RJ11 Connector Cable : 01 Nos.
•    Plastic Fiber Cable Multimode: 01 Meter.
•    Software CD: 01 No.
•    Experimental Manual: 01 No.
•    Power Supply Cable: 01 No.
