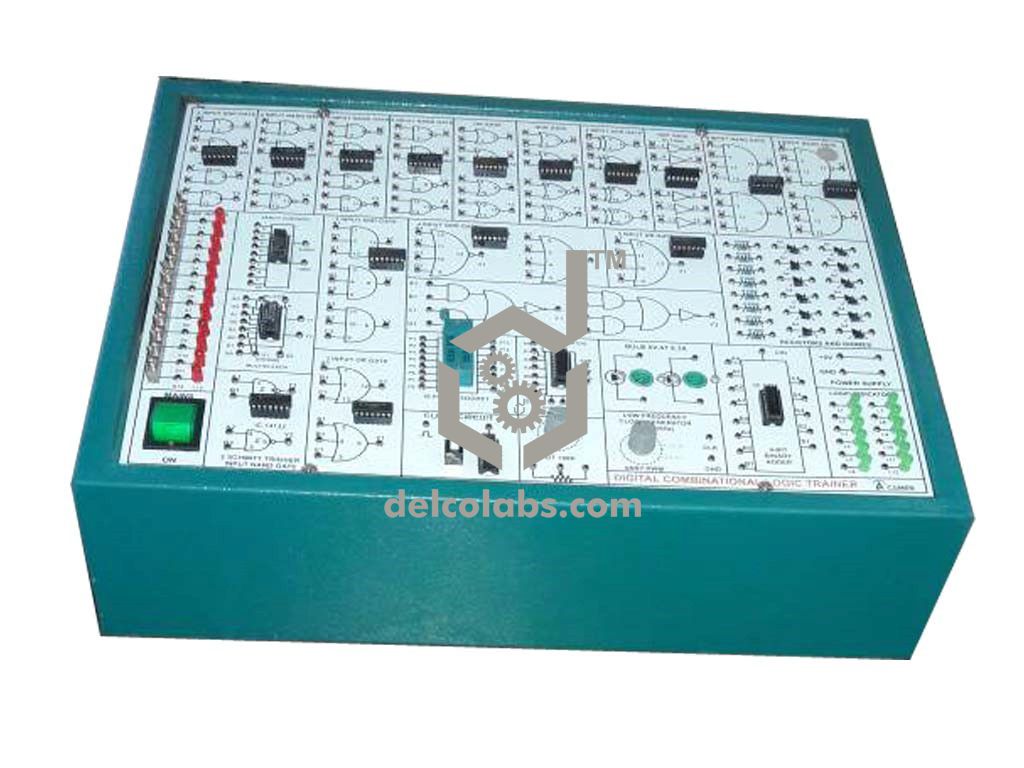

Combinational Logic Trainer

Product Code: 3510119

SCOPE OF LEARNING:
•    Study and Construction of Various Digital Electronics Lab Experiment
TECHNICAL SPECIFICATIONS:
Power Supplies:
•    Dc Power Supply IC Regulated +5V Dc, 1A.
•    Operated On Mains Power 230v, 50hz +10%
Logic Gates:
1.    4 AND (2-input)
2.    3 AND (3-input)
3.    12 NAND (2-input)
4.    4 NAND (4-input)
5.    2 NAND TRIGGER (4-input)
6.    4 OR (2-input)
7.    2 OR (3-input)
8.    1 OR (4-input)
9.    4 NOR (2-input)
10.  2 NOR (4-input)
11.  4 EX-OR (2-input)
12.  6 inverters
13.  2 AOI (2 and 3 input)
•    Adder And Subtractor Using 7483 IC
•    Parity Checker Using 74280 IC
•    Multiplexer Using 74153 IC
•    Comparator Using 7485 IC
•    16 Pin Zip Socket
•    The Following Components Are Provided On The  Trainer Set
1.    Bulb 2 Nos.
2.    Pot 100K
3.    Pulse Generator with Rising and Falling Edge.
4.    Low Frequency Clock Generator 1H to 10Hz.
5.    12 silicon diodes
6.    8 resistances
•    Logic Inputs & Outputs 16 Bit
SALIENT FEATURES:
•    Front Panel Built With High Class Insulated Printed Circuit Board Sheet With Well Printed Circuits & Symbols.
•    Fuse For Short Circuit Protection
•    Instruction Manual.
•    Connections are brought out through 2mm Brass Sockets.
•    Patch Cords 2mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 15”x11”
OPTIONAL ACCESSORIES:
•    Multimeter
