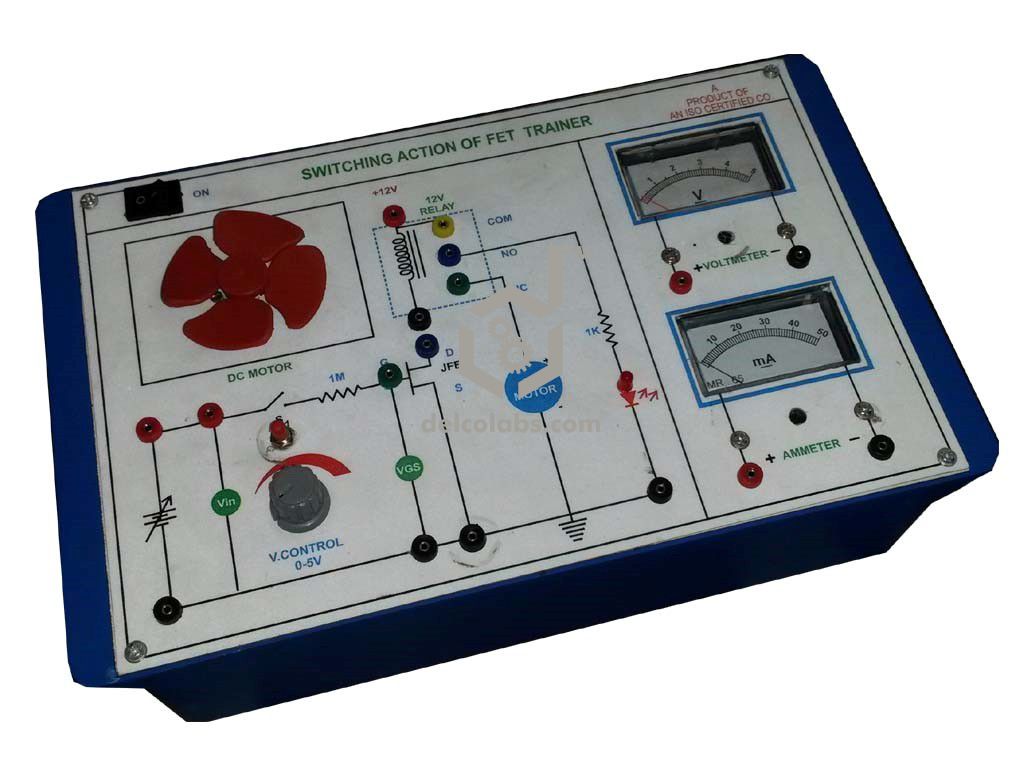

Switching Action of FET Trainer

Product Code: 3510196

SCOPE OF LEARNING:
•    Study of design and functioning of FET
TECHNICAL SPECIFICATIONS:
Analog  Meters:
•    Voltmeter
•    Ammeter
•    Power Supplies:
•    DC Supply IC Regulated 0-5V DC, 250mA.
•    DC Supply IC Regulated +12V DC, 250mA.
•    Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
•    FET BFW11
•    Motor With Fan
•    Relay 12V
•    Led
•    Required Resistors
SALIENT FEATURES:
•    Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
•    Fuse for Short Circuit protection
•    Instruction manual.
•    Connections are brought out through 2mm Colored Sockets.
•    Patch Cords 2mm.
•    The trainer is housed in ABS Plastic cabinet.
•    Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
•    Multimeter
